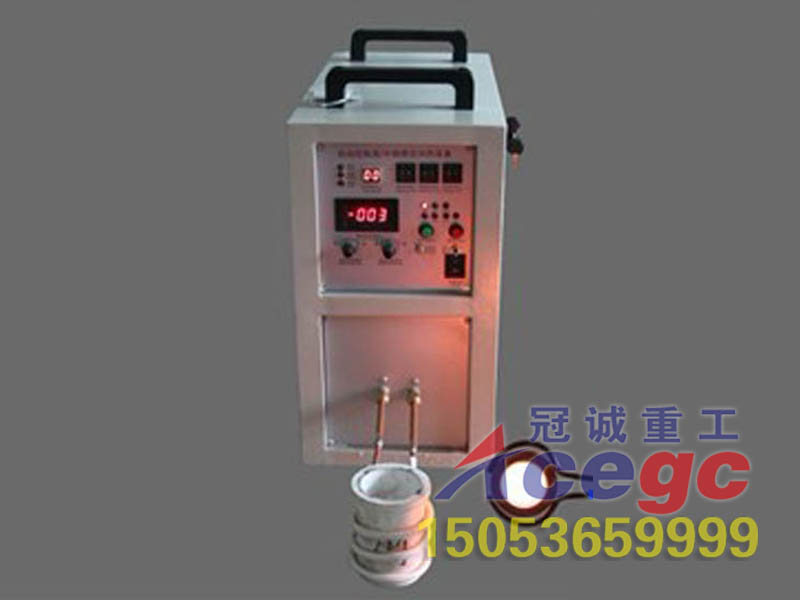

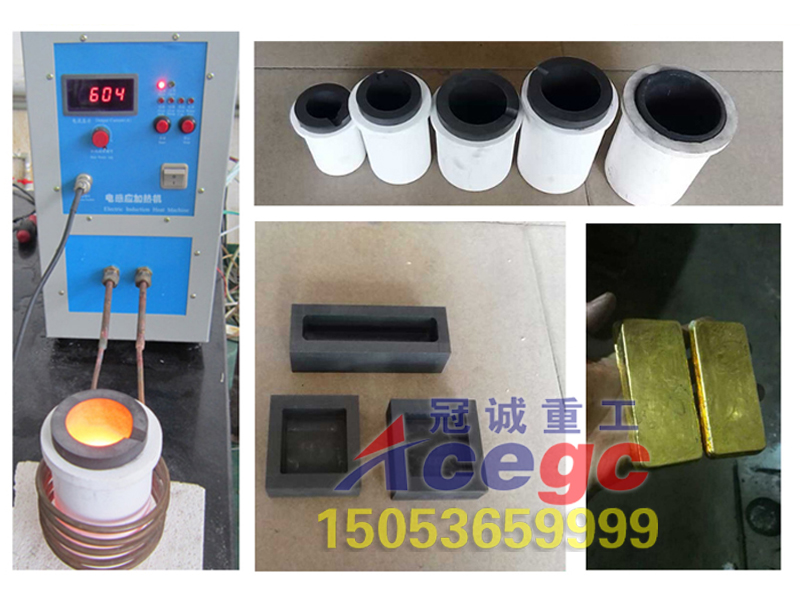

熔金炉主要技术参数:Main technical parameters of gold melting furnace
1、最大振荡功率Maximum oscillation power : 25KVA
2、功率power : 5KW
3、振荡频率scillation frequency : 30—80KHZ
4、输入电压input voltage : 三相 380V, 50 或or 60HZ
5、负载持续率Load duration: 80%
6、炉温温度范围Furnace temperature range：≥1600℃
7、单次熔化时间Single melting time：≤10min
 8、单次熔炼量Single smelting capacity:金银铜Gold, silver and copper15g～4kg （可以边熔边加料You can add material while melting）
9、成套冷却水要求CW：0.2Mpa,4～5 L/min
10、机器进出水冷却控制：利用增压水泵控制进出水流循环冷却。Cooling control of machine inlet and outlet water: circulating cooling of inlet and outlet water is controlled by booster pump
注：机器内电子元器件均为西门子。Note: all electronic components are Siemens components.
